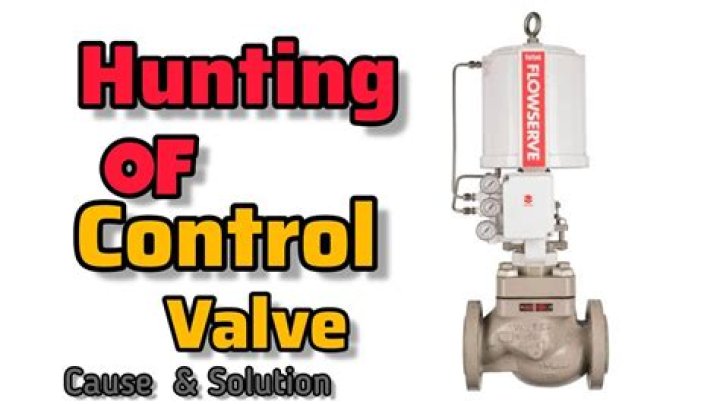

What is control valve hunting?

Control valve hunting is a condition when the valve closes and opens at an uncontrolled rate. It denotes that the control valve is unable to find the correct position in order to maintain the set process conditions. In a closed loop this causes the process variable to move around its set point.

Correspondingly, what is a control valve and how does it work?

A control valve is a valve used to control fluid flow by varying the size of the flow passage as directed by a signal from a controller. This enables the direct control of flow rate and the consequential control of process quantities such as pressure, temperature, and liquid level.

Subsequently, question is, how do you check a control valve? Control valve pressure test

1. For body test blind the output of control valve using blind flange.
2. Valve should be fully opened position either control valve is NO or NC. It should be open at the time of test.
3. The other important parameter to check is body rating of control valve.

One may also ask, how does a pressure control valve work?

The Principle of Direct Acting Valve A mechanical spring holds the flow of fluid in a direct acting valve. Here, the spring force and the hydraulic pressure work against each other in limiting the flow. At the full relief valve pressure, the valve is fully open permitting the maximum flow of liquid.

How many types of control valves are there?

two

Related Question Answers

What is CV in control valve?

Water System Control Valve Fundamentals. The CV factor is a standard used by all valve manufacturers. CV stands for the “coefficient of flow” of a valve, and is further defined as the flow rate in gallons of 60°F water that will pass through a valve in one minute at one-pound pressure drop.

Which valve is better for on off control?

Globe valves are considered the industry standard for control valves because they are good at regulating flow, whereas ball valves are better for on/off control without pressure drop.

What is the principle of control valve?

Control valves are valves used to control conditions such as flow, pressure, temperature, and liquid level by fully or partially opening or closing in response to signals received from controllers that compare a “setpoint” to a “process variable” whose value is provided by sensors that monitor changes in such

What are different types of control valves?

List of common types of control valve

• Sliding Stem. Globe valve – Type of device for blocking or regulating the flow of fluids. Angle body valve. Angle seat piston valve.
• Rotary. Butterfly valve. Ball valve.
• Other. Pinch valve. Diaphragm valve.

How do you control a valve?

Control Valve Arrangement. The image below shows how a control valve can be used to control rate of flow in a line. The "controller" receives the pressure signals, compares them with pressure drop for the desired flow and if the actual flow is different, adjusts the control valve to increase or decrease the flow.

What is the difference between control valve and on off valve?

XV valves are usually on/off type of valves. They are used basically for providing tight shut off conditions. Whereas, control valves[1] are used for controlling the flow based on the process conditions. For this, you need a control valve in the pump discharge at the bottom of the vessel.

Is gate valve a control valve?

Gate valves are designed for fully open or fully closed service. They are installed in pipelines as isolating valves, and should not be used as control or regulating valves. As the valve has to turn multiple times to go from open to closed position, the slow operation also prevents water hammer effects.

How do you reduce hunting control valve?

Proper tuning of controller is the solution to control valve hunting due to loop problems. If it is not hunting in manual then the reason could be due to other factors like actual variations in process variable, valve sizing etc which are discussed in the forthcoming chapters.

What is the difference between flow control valve and pressure control valve?

Basically, the pressure control valve is concerned with controlling the pressure that is upstream of its location by limiting the amount of liquid allowed to pass downstream. The flow control valve is concerned with controlling the amount of liquid that is flowing past it downstream.

What is the pressure control valve?

Pressure valves are hydraulic valves that gradually (control) or suddenly (switch) change in position. The most common types of pressure control valves are the pressure relief valve and the pressure reducing valve. Pressure relief valves control the system pressure by relieving part, or all, of the flow to tank.

Which type of pressure control is normally open?

Normally closed solenoid valves include a plunger that remains in a closed position when the system is running smoothly, like pressure relief valves. Normally closed solenoid valves also include a coil that, when powered, will cause the plunger to open and allow liquid or gas to pass through the valve.

What happens when a pressure regulator valve fails?

Symptoms of Regulator Failure If you have a regulator and it fails, you'll notice an immediate reaction in your home. For instance, you'll experience irregular water pressure that is hard to control with your sink, toilet, or bathtub faucets. The pressure is likely too high or too low.

Can valves increase pressure?

On an air compressor, there is a valve that regulates the pressure. If you open the valve, the pressure increases.

Does a pressure reducing valve reduce flow?

How do pressure reducing valves work? A pressure reducing valve is a valve which takes a high inlet pressure and reduces it to a lower outlet pressure. When it does this under both flow and no-flow conditions, the type of control is known as 'drop tight'.

Where is pressure relief valve used?

In high-pressure gas systems, it is recommended that the outlet of the relief valve is in the open air. In systems where the outlet is connected to piping, the opening of a relief valve will give a pressure build up in the piping system downstream of the relief valve.

How do you adjust a flow control valve?

Loosen, or unlock the adjustment retaining lock on a flow control valve. Use the required key for some locking valves. Turn the locking nut on others by hand or with an adjustable wrench. Turn flow control valves in the clockwise direction to reduce the flow going through.

How do you measure a control valve?

When sizing control valves, a general rule of thumb noted in many engineering publications is to size the valve such that it operates between 20 to 80% open at maximum required flow rate. It is also recommended to have the minimum opening no less than 20% to provide a safety margin at the minimum flow rate required.

How do you install a control valve?

Install the control valve, preferably in a straight run of pipe, away from bends or sections of abnormal velocity. Control valves can be installed in any orientation. However the preferred installation is in horizontal pipeline with the actuator in a vertical position.

How would we loop check a flow control valve?

If there is a local controller mounted in a loop, the signal to verify the operation of the valve will be generated manually using the manual operation device in the controller before the automatic operation check. An automatic operation check will be performed by changing the setpoint of the controller.

Why is a globe valve used in a bypass around a control valve?

Globe valves have higher pressure drop and less Cv value compared to butterfly valves in the same size and pressure class. Additionally, globe valves have better flow control characteristics and range ability.

What is stroke checking of control valve?

Partial stroke testing (or PST) is a technique used in a control system to allow the user to test a percentage of the possible failure modes of a shut down valve without the need to physically close the valve.

How do you design a control valve?

The valve design equation relates the pressure drop ΔPv Δ P v across the valve to the volumetric flow rate q . The Cv is a measure of the size of a valve and valve suppliers have different valve body sizes, each with a different Cv value. The valve position or lift l is adjusted to regulate flow through the valve.

Why is a control valve one smaller?

An oversized valve is very sensitive to operating conditions. Even the smallest changes in valve position will cause significant changes in flow. This makes it difficult or even impossible for the valve to exactly adjust to the required flow. Properly sized globe valves are usually one size smaller than the line.

Can control valve be installed vertically?

Control valves can be installed in any orientation. However the standard method is with the actuator in a vertical position. If the control valve is not installed vertically, the yoke must be supported.

How does a valve positioner work?

Control Valve Positioner Working Principle. A valve Positioner is a device used to increase or decrease the air load pressure driving the actuator until the valve's stem reaches a “POSITION” balanced to the output SIGNAL from the process variable instrument controller.

How do you calculate valve CV?

Cv by definition is the number of gallons per minute (GPM) a valve will flow with a 1 psi pressure drop across the valve. For example a valve with a Cv of 10 will flow 10 GPM with a 1 psi pressure drop. The formula used to select the valve Cv with the specified differential pressure is: Cv=GPM/((SQ RT(∆P)).

What are the two types of valves?

Common valve types include: Ball,Butterfly,Check, Diaphragm, Gate, Globe, Knife Gate, Parallel Slide, Pinch, Piston, Plug, Sluice, etc.

What is an automatic control valve?

A flow control valve regulates the flow or pressure of a fluid. Flow Control valves normally respond to signals generated by independent devices such as flow meters or temperature gauges. Control valves are normally fitted with actuators and positioners. These types of valves are also known as Automatic Control Valves.

What is spring range of control valve?

The range of air pressure is equal to the stated actuator spring rating, for example 0.2 - 1 bar. With a larger valve and/or a higher differential pressure to work against, more force is needed to obtain full valve movement. To create more force, a larger diaphragm area or higher spring range is needed.

What is Globe Control Valve?

A globe valve, different from ball valve, is a type of valve used for regulating flow in a pipeline, consisting of a movable plug or disc element and a stationary ring seat in a generally spherical body.
