What is voltage sag in electrical?

Power Quality and Adjustable Speed Drives

A voltage sag (or dip) is a disturbance where the rms value of the line voltage is reduced for a period ranging from one half-cycle of the voltage to 500 ms. Shorter occurrences are regarded as transient disturbances.

In respect to this, what do you mean by voltage sag?

A voltage sag (or dip) is a disturbance where the rms value of the line voltage is reduced for a period ranging from one half-cycle of the voltage to 500 ms. Shorter occurrences are regarded as transient disturbances. Occurrences during longer than 500 ms are defined as an undervoltage condition.

Furthermore, how do you fix voltage sag? A supercapacitor provides power during short duration interruptions and voltage sags. By combining a supercapacitor with a battery-based UPS system, the life of the batteries can be extended. The batteries provide power only during the longer interruptions, reducing the cycling duty on the battery[16].

Similarly, you may ask, what can cause a voltage sag?

A voltage sag (U.S. English) or voltage dip (British English) is a short duration reduction in rms voltage which can be caused by a short circuit, overload, or starting of electric motors. A voltage sag happens when the rms voltage decreases between 10 and 90 percent of nominal voltage for one-half cycle to one minute.

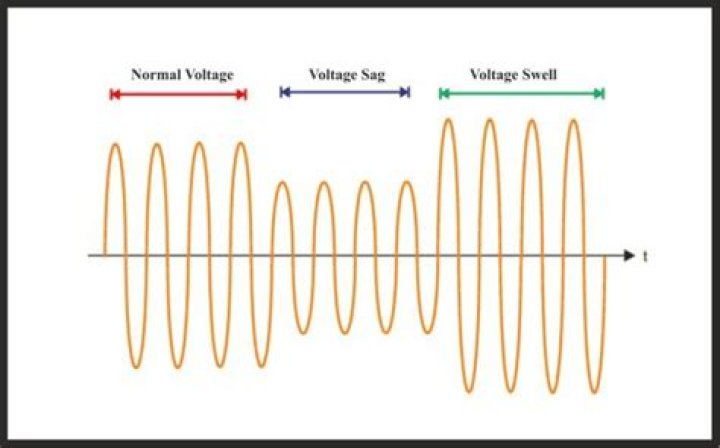

What is meant by voltage sag and swell?

Sag (dip) a decrease to between 0.1 and 0.9 pu in rms voltage or current at the power frequency for durations of 0.5 cycles to 1 minute. Swell - an increase to between 1.1 pu and 1.8 pu in rms voltage or current at the power frequency durations from 0.5 to 1 minute.

Related Question Answers

What is voltage interruption?

A voltage interruption is a state during which the URMS(1/2) voltage is lower than the specified interruption level. During the interruption, a power quality analyser remembers the minimum recorded voltage and the average voltage value.

What are the types of voltage sag?

Type A voltage sags are due to three-phase faults, regardless of transformer winding and load connections. Type B voltage sags are only caused by SLG faults. Types C & D are produced from either SLG or LL faults. Types E, F & G are only expected if the fault is LLG.

Why the voltage sag needs to be eliminated?

Voltage sags are one of the most important power quality problems affecting industrial processes. The utility can improve system fault performance in a limited degree, but cannot eliminate all faults. This allows use of the motor's inertia to ride through most voltage sag events.

Which parameter is responsible for voltage sag in motor starting?

Induction motors under starting conditions have extremely low power factor of around 10-30%. The combination of large starting current and poor power factor will cause large voltage drop across the system impedances.

What is reduction in voltage for a short time?

Supply voltage dip. A sudden reduction of the supply voltage to a value between 90% and 1% of the declared voltage, followed by a voltage recovery after a short period of time. Conventionally, the duration of a voltage dip is between 10 ms and 1 min.

What are the causes of voltage?

Voltage is the pressure from an electrical circuit's power source that pushes charged electrons (current) through a conducting loop, enabling them to do work such as illuminating a light.

Where are voltage regulators used?

Such a device is widely used in motor vehicles of all types to match the output voltage of the generator to the electrical load and to the charging requirements of the battery. Voltage regulators also are used in electronic equipment in which excessive variations in voltage would be detrimental.

What is voltage unbalance?

Voltage unbalance occurs when the RMS line voltages on a poly-phase system are unequal. Voltages are seldom perfectly balanced between phases, but when this unbalance becomes excessive, it can create problems for poly-phase motors.

How do you prevent voltage sag and swell?

Power line conditioning technologies such as uninterruptable power supplies (UPS) can be extremely useful. These protect sensitive equipment from momentary losses by sensing voltage sags and transferring the power supply to a battery.

What causes a voltage swell?

Voltage Swells are typically due to large loads turning off. This causes a sudden change in load impedance which can cause the voltage to swell. These loads can include such things as large motors, arc furnaces and large welders.

What is meant by voltage swell?

A voltage swell is a short duration increase in voltage values. Voltage swells lasting longer than two minutes are classified as overvoltages. Voltage swells and overvoltages are commonly caused by large load changes and power line switching.

How do you calculate voltage swell?

Causes and Effects of Voltage Swells Voltage swells can also be caused by the deenergization of a very large load. The abrupt interruption of current can generate a large voltage, per the formula: V = L di/dt, where L is the inductance of the line and di/dt is the change in current flow.

How is voltage sag characterized?

Voltage sag is defined as a decrease in rms voltage at the power frequency for durations of 0.5 cycles to 1 minute. The parameters used to characterize voltage sag are magnitude, duration and phase angle jump.
