Why Gypsum is added to clinker?

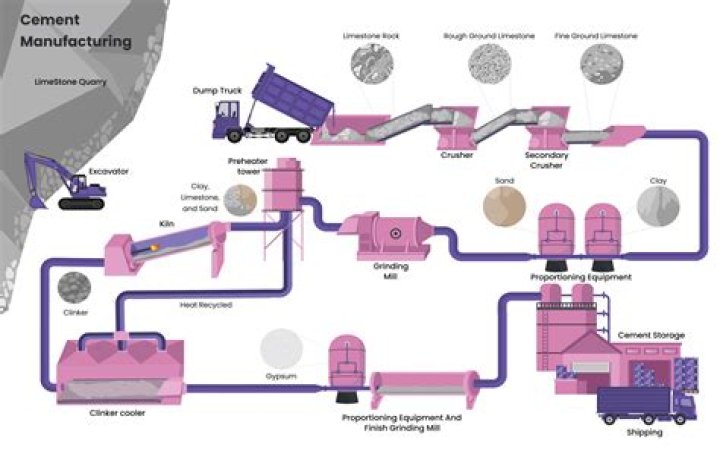

Gypsum plays a very important role in controlling the rate of hardening of the cement. During the cement manufacturing process, upon the cooling of clinker, a small amount of gypsum is introduced during the final grinding process. Gypsum is added to control the “setting of cement”.

Considering this, what happens when gypsum is added to cement?

When cement is mixed with water, it becomes hard over a period of time. This is called setting of cement. Gypsum is often added to Portland cement to prevent early hardening or “flash setting”, allowing a longer working time. Gypsum slows down the setting of cement so that cement is adequately hardened.

Additionally, what is the purpose of gypsum? Gypsum uses include: manufacture of wallboard, cement, plaster of Paris, soil conditioning, a hardening retarder in portland cement. Varieties of gypsum known as "satin spar" and "alabaster" are used for a variety of ornamental purposes; however, their low hardness limits their durability.

In this regard, how much gypsum is added to cement?

For ordinary Portland cement, it remains between 3 to 4% and in case of Quick setting cement, it can be reduced up to 2.5%. The main purpose of adding gypsum in the cement is to slow down the hydration process of cement once it is mixed with water.

Why does cement harden on addition of water?

The water causes the hardening of concrete through a process called hydration. Hydration is a chemical reaction in which the major compounds in cement form chemical bonds with water molecules and become hydrates or hydration products.

Related Question Answers

How does gypsum slow down hydration?

The main purpose of adding gypsum in the cement is to slow down the hydration process of cement once it is mixed with water. The process involved in hydration of cement is that, when the water is added into cement, it starts reacting with the C3A and hardens.

Why fly ash is used in cement?

Fly ash is a pozzolan, a substance containing aluminous and siliceous material that forms cement in the presence of water. When used in concrete mixes, fly ash improves the strength and segregation of the concrete and makes it easier to pump.

What are the three forms of gypsum?

? Three types of gypsum products will be discussed: plaster, stone, and high-strength or improved stone. Chemically, all three are calcium sulfate hemihydrate. 12. ? They are produced as a result of heating gypsum and driving off part of the water of crystallization.

Why cement is called Portland cement?

Its name is derived from its similarity to Portland stone, a type of building stone quarried on the Isle of Portland in Dorset, England. In his 1824 cement patent, Joseph Aspdin called his invention "Portland cement" because of its resemblance to Portland stone.

What is the color of gypsum?

Gypsum is a very soft mineral that is easily identified by its hardness, cleavage, and solubility in water. Typically clear to white, gypsum may be colored reddish to brown or yellow if impurities are present.

Is white cement same as plaster of Paris?

Made out of Gypsum, Plaster of Paris (POP) is a white powder that is used for giving early coats to the walls, giving shapes to structure or creating casts and likewise. On the other hand, wall care putty is made out of white cement, like White Portland Cement.

Is lime and gypsum the same thing?

1. Lime is a carbonate, hydroxide or oxide of calcium whereas gypsum is a sulphate. 2. Lime has more alkaline properties whereas gypsum is slightly more acid.

Does Gypsum dissolve in water?

Gypsum is somewhat soluble in water, but more than 100 times more soluble than limestone in neutral pH soils. When applied to soil, its solubility depends on several factors, including particle size, soil moisture, and soil properties. neutralize acidity in low pH soils.

What is the formula of gypsum?

Gypsum is a soft sulfate mineral composed of calcium sulfate dihydrate, with the chemical formula CaSO₄·2H₂O. It is widely mined and is used as a fertilizer and as the main constituent in many forms of plaster, blackboard/sidewalk chalk, and drywall.

What is Type S cement?

Type S Masonry Cement, when mixed with sand, is used to make Type S mortar mixes. Type S Masonry Mortar is suitable for building structural masonry walls both above and below grade. Quikrete 70 lb. Type S Masonry Cement can also be used for making stucco mixes complying with the requirements for ASTM C 926.

How do you mix gypsum with water?

Gypsum Mixing Techniques

1. Use room temperature water.
2. Use only water that is drinkable.
3. Always place water in bowl first, then add powder to water slowly and evenly.
4. Let powder soak in water at least 30 seconds while moving bowl around to wet the powder before mixing.

Why clinker is used in cement?

Use of Clinker: Conversion to Cement Gypsum added to and ground with clinker regulates the setting time and gives the most important property of cement, compressive strength. It also prevents agglomeration and coating of the powder at the surface of balls and mill wall.

Can I mix plaster of Paris with cement?

Cement is the binder in concrete without the rocks and you can find it at most lumber yards. I've experimented with this and found that 3 parts plaster of paris mixed with 2 parts cement will have almost the same durability as dental stone, but costs only as much as plaster of paris.

How many types of gypsum are there?

five different gypsum types

Can you mix plaster and cement?

2 Answers. It works well. Dry mix the cement and plaster first - before adding water. With just cement and plaster you have no aggregate, like sand or gravel or binders, fibers, etc so your structural performance will depend on several other factors.

What is the formula of cement?

Chemical composition Portland cement is made up of four main compounds: tricalcium silicate (3CaO · SiO₂), dicalcium silicate (2CaO · SiO₂), tricalcium aluminate (3CaO · Al₂O₃), and a tetra-calcium aluminoferrite (4CaO · Al₂O₃Fe₂O₃).

Which cement is used for dam construction?

Low Heat Cement is generally used for the dam construction. This type of cement is produced by lowering the amount of tricalcium aluminate (C3A) & di-calcium silicate (C2S).

Is Gypsum harmful to humans?

Gypsum products are not classified as dangerous according to EU CLP Regulations. There are no long term adverse medical effects from ingestion of gypsum. If ingested, wash out the mouth and drink plenty of water. Plaster powders/dust potentially may irritate eyes or sensitive skin or irritate the respiratory system.

Where is Gypsum most commonly found?

Gypsum rock is found throughout the world and deposits in North America run from Baja, Mexico, through Utah and from southwestern Texas to the Niagara River in New York State. The largest gypsum quarry in the world is located in Nova Scotia and is owned by National Gypsum.

How do you apply gypsum to soil?

Set a lawn spreader or hand-held garden spreader to 40 pounds per 1000 square feet for existing lawns or gardens, or 20 to 30 pounds per 1000 square feet for unplanted soil. Add granulated gypsum to the spreader hopper until the gypsum reaches the fill line.

What is the difference between halite and gypsum?

Halite has three perfect cleavages that form at right angles to form cubes. Gypsum crystals only have one perfect cleavage direction. The other two cleavage directions are not as pronounced, so broken gypsum crystals tend to form rhomb-shaped fragments, rather than cubes.

How does Gypsum break up clay?

The first step is to add gypsum to the soil. Gypsum works on the clay, breaking it up into small crumbly pieces making it easier to work with and also improves drainage. If the soil is a very heavy clay, then this may need to be done more than once. The next step is to build up the soil with plenty of organic matter.

Is Gypsum safe to eat?

Gypsum (calcium sulfate) is recognized as acceptable for human consumption by the U.S. Food and Drug Administration for use as a dietary source of calcium, to condition water used in brewing beer, to control the tartness and clarity of wine, and as an ingredient in canned vegetables, flour, white bread, ice cream, blue

What is the use of gypsum in agriculture?

Gypsum is chemically (Calcium Sulphate dihydrate). It acts as a source of two main plant nutrients i.e Calcium and Sulphur. Basically gypsum is used for Soil amendments to improve Chemical and physical properties of soil. It is most commonly used amendment for sodic soil reclamation.

Which compound is liberates higher heat?

Which compound is liberates higher heat? Explanation: C3S having a faster rate of reaction accompanied by greater heat generation developes early strength of the paste.

Does cement harden?

Cement hardens through a process called hydration. This process begins when water is mixed in with cement and an aggregate such as gravel or crushed limestone is added to form concrete.

Can I just mix cement with water?

Cement mixed with water alone produces a brittle material that when brought in contact with other materials, loses its water content quickly, thus weakening it further.

What are admixtures?

Admixtures are natural or manufactured chemicals which are added to the concrete before or during mix- ing. The most often used admixtures are air-entraining agents, water reducers, water-reducing retarders and accelerators.

What is difference between setting and hardening of cement?

Setting of cement refers to changes of cement paste from a fluid to rigid state. Setting differs from Hardening of cement. The term 'Hardening' refers to the gain of strength of a set cement paste, although during setting the cement paste acquires some strength. Hardening or stiffening: It happens after setting state.

Does water weaken concrete?

Concrete can set up under water. Having a wet concrete floor that has hardened / cured properly does not weaken the floor. The strength of concrete is based on the cement (portland cement) to water ratio. Too much water makes the concrete weaker.

Why lime is added to cement?

Pure lime mortars behave as if they are flexible and lime cement mortars are slower hardening and remain more flexible than cement sand mortars. Lime, therefore, enhances the ability of the brickwork to accommodate stresses caused by building movement and cyclical changes without excessive cracking.

Which compound has the maximum heat of hydration?

C3A generates 320cal/g heat of hydration which is highest. Also it reacts fast with water.

What is water cement ratio?

The water–cement ratio is the ratio of the weight of water to the weight of cement used in a concrete mix. A lower ratio leads to higher strength and durability, but may make the mix difficult to work with and form. Workability can be resolved with the use of plasticizers or super-plasticizers.
